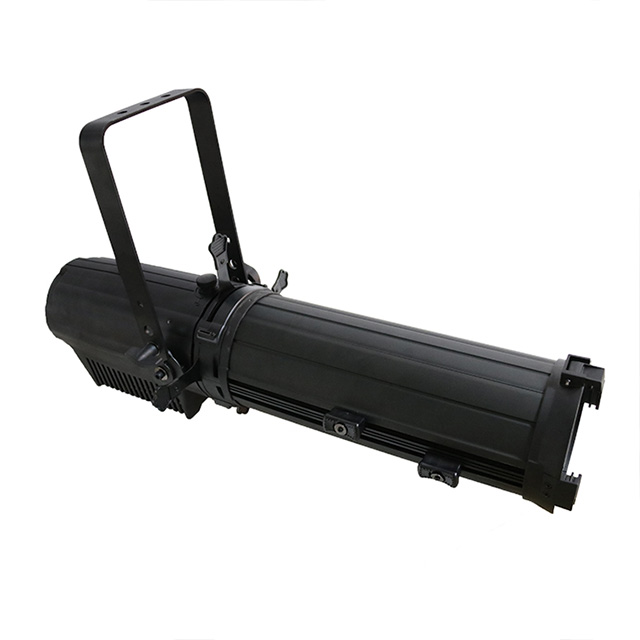

theater theatre Leko Ellipsoidal Zoom led studio light

Wide Zoom, 200W/300W Citizen COB LED, WW/CW/RGBW, Touch Screen

*RGBW 4in1(200W),Cool White(200W/300W), Warm White(200W/300W) COB LED
*Imported Japan Citizen COB LED
*Beam angle: Zoom from 12°to 30°or 25°to 50°
*High quality Nichia IC Chip, CRI≥90
*Extremely quiet fan, Copper tube heat Sinking, no any noise
*4 kinds Dimming Curve
*Focus and Zoom can be adjustable by hand
*High-quality optical system, glass reflector
*Touch Screen
*RDM
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • LED Ellipsoidal Zoom

  • Prowalls

  • LED Screen


Description

LED Ellipsoidal Zoom features a High Powered 200W/300W >90CRI, (4) blade manual framing shutters, manual focus, DMX controlled electronic strobe, and 4 kinds dimming curve modes, adjustable refresh frequency and gamma brightness for flicker free operation for TV and FILM.


Features

*LED Source: RGBW 4in1(200W),Cool White(200W/300W),Warm White(200W/300W) COB LED

*Imported Japan Citizen COB LED

*Beam angle: Zoom from 12°to 30°or 25°to 50°

*High quality Nichia IC Chip, CRI≥90

*Extremely quiet fan, Copper tube heat Sinking, no any noise

*4 kinds Dimming Curve

*Focus and Zoom can be adjustable by hand

*High-quality optical system, glass reflector

*Touch Screen

*RDM


Specification


SOURCE

Option RGBW 4in1(200W),Cool White(200W/300W),Warm White(200W/300W) COB LED

3200K warm white/5600K cool white Color Temperature/RGBW 4IN1

60,000 Hours LED Lifetime (May vary depending on different factors)


FUNCTION

LED Source: RGBW 4in1(200W),Cool White(200W/300W),Warm White(200W/300W) COB LED

Imported Japan Citizen COB LED

Beam angle: Zoom from 12°to 30°or 25°to 50°

High quality Nichia IC Chip, CRI≥90

Extremely quiet fan, Copper tube heat Sinking, no any noise

4 kinds Dimming Curve

Dimmer :0~100% linearly adjustable

Strobe :1-25times/sec

Refresh Rate:>400 Video Flicker Free

Focus and Zoom can be adjustable by hand

High-quality optical system, glass reflector

Touch Screen

RDM


CONTROL & CONNECTIONS

DMX Channel Modes: 1/3CH(single color),4/8CH(RGBW)

Intelligent Touch Screen

3-pin DMX In/Out

PowerCON Power In/Out

RDM/DMX512, Auto run, Sound, Master/Slave


THERMAL & ELECTRICAL

200/300W max Power Consumption

Input voltage: 100-240V AC/50-60 Hz


APPROVALS / RATINGS

CE | RoHs Compliant | IP20


PACKAGE SIZE / WEIGHT

37.4" (950mm) Length

13.0" (330mm) Width

12.6" (320mm) Height

26.5lbs (12g) Weight


If the device has been exposed to temperature changes due to environmental changes, do not switch it on immediately. The arising condensation could damage the device. Leave the device switched off until it has reached room temperature. This device falls under protection-class I. Therefore it is essential that the device be earthed. The electric connection must carry out by qualified person. The device shall only be used with rate voltage and frequency. Make sure that the available voltage is not higher than stated at the end of this manual. Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case, replacement of the cable must be done by an authorized dealer. Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power cord by the plug. Never pull out the plug by tugging the power cord. During initial start-up some smoke or smell may arise. This is a normal process and does not necessarily mean that the device is defective, it should decrease gradually. Please don't project the beam onto combustible substances. Fixtures cannot be installed on combustible substances, keep more than 50cm distance with wall for smooth air flow, so there should be no shelter for fans and ventilation for heat radiation. If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.


This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.


Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors. Please refer to the diagram below. DMX-512 connection with DMX terminator


For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise. The DMX terminator is simply an XLR plug with a 120 Ω resistor connected between pins 2 and 3,which is then plugged into the output XLR socket of the last fixture in the chain. Please see illustrations below.
