LED FD Fresnel
Prowalls
LED Screen
Description
LED FD Fresnel is a Fresnel wash utilizing data and power sensors that make it possible to run on both dimming power systems and constant power rigs. It features a imported Japan Citizen COB LED, 3200K/5600K, 200W/300W. The unit projects a bright, beautifully soft field of light, the phenomenal dimming and the smooth. A motorized zoom with a 15°– 50° field angle allows you to add light where it is needed, can be control via DMX, flicker-free use on camera.
Features
*200W or 300W, 3200K warm white/5600K cool white
*Imported Japan Citizen COB LED
*High quality Nichia IC Chip, CRI≥93, max.97
*Extremely quiet fan, Copper tube heat Sinking, no any noise
*Linear dimming and 15-50 degree linear motorized Zoom
*Bright and beautifully soft field of light, Spot uniform distribution
*Customizable WW+CW 2in1 (Warm white+Cool white) / RGB 3in1(Red, Green, Blue) / RGBW 4in1(Red, Green, Blue, White)
Description
LED FD Fresnel is a Fresnel wash utilizing data and power sensors that make it possible to run on both dimming power systems and constant power rigs. It features a imported Japan Citizen COB LED, 3200K/5600K, 200W/300W. The unit projects a bright, beautifully soft field of light, the phenomenal dimming and the smooth. A motorized zoom with a 15°– 50° field angle allows you to add light where it is needed, can be control via DMX, flicker-free use on camera.
Features
*200W or 300W, 3200K warm white/5600K cool white
*Imported Japan Citizen COB LED
*High quality Nichia IC Chip, CRI≥93, max.97
*Extremely quiet fan, Copper tube heat Sinking, no any noise
*Linear dimming and 15-50 degree linear motorized Zoom
*Bright and beautifully soft field of light, Spot uniform distribution
*Customizable WW+CW 2in1 (Warm white+Cool white) / RGB 3in1(Red, Green, Blue) / RGBW 4in1(Red, Green, Blue, White)
Specification
FUNCTION
Imported Japan Citizen COB LED
High quality Nichia IC Chip, CRI≥90, max.97
Extremely quiet fan, Copper tube heat Sinking, no any noise
0-100% Linear dimming
15-50 degree linear motorized Zoom
Bright and beautifully soft field of light, Spot uniform distribution
Electronic Shutter/Strobe
Customizable WW+CW 2in1(Warm white+Cool white)/RGB 3in1(Red, Green, Blue)/RGBW 4in1(Red, Green, Blue, White)

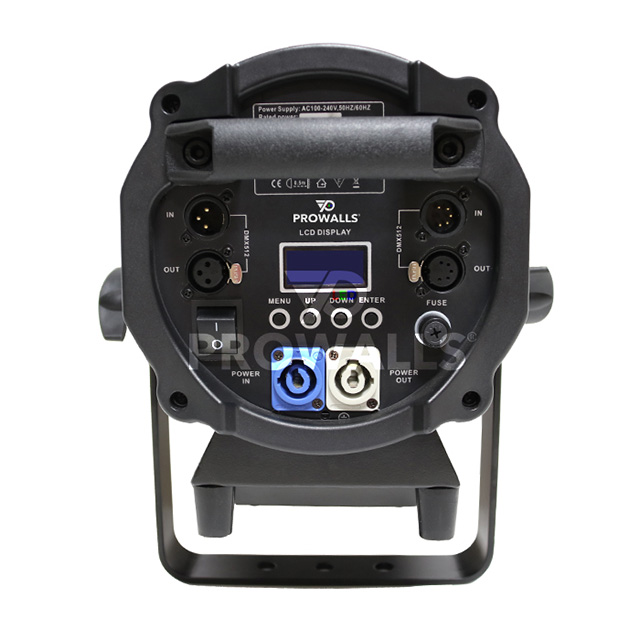

CONTROL & CONNECTIONS
(2) DMX Channel Modes (1/3 channels)
Intelligent LCD Display
3-pin/5-pin DMX In/Out
PowerCON Power In/Out
DMX512, Auto run, Sound, Master/Slave
THERMAL & ELECTRICAL
250W max Power Consumption
Input voltage: 100-240V AC/50-60 Hz
APPROVALS / RATINGS
CE | RoHs Compliant | IP20
PACKAGE SIZE / WEIGHT
22.8" (580mm) Length
13" (330mm) Width
13.8" (350mm) Height
22lbs (10g) Weight
Specification
FUNCTION
Imported Japan Citizen COB LED
High quality Nichia IC Chip, CRI≥90, max.97
Extremely quiet fan, Copper tube heat Sinking, no any noise
0-100% Linear dimming
15-50 degree linear motorized Zoom
Bright and beautifully soft field of light, Spot uniform distribution
Electronic Shutter/Strobe
Customizable WW+CW 2in1(Warm white+Cool white)/RGB 3in1(Red, Green, Blue)/RGBW 4in1(Red, Green, Blue, White)
CONTROL & CONNECTIONS
(2) DMX Channel Modes (1/3 channels)
Intelligent LCD Display
3-pin/5-pin DMX In/Out
PowerCON Power In/Out
DMX512, Auto run, Sound, Master/Slave
THERMAL & ELECTRICAL
250W max Power Consumption
Input voltage: 100-240V AC/50-60 Hz
APPROVALS / RATINGS
CE | RoHs Compliant | IP20
PACKAGE SIZE / WEIGHT
22.8" (580mm) Length
13" (330mm) Width
13.8" (350mm) Height
22lbs (10g) Weight
DMX CHANNELS LED FD Fresnel -5 CH Mode (Standard channel model)
Channel Data Function
Mark 1 0~255 dimmer 0-255 linear dimmer 2 speed of dimmer 0~9 speed of dimmer 2 Default 10~29 Turn off speed of dimmer speed of dimmer 4 (the slowest and softest) 30~69 speed of dimmer 1 70~129 speed of dimmer 2 130~189 speed of dimmer 3 190~255 speed of dimmer 4 3 0~10 no strobe 11~255 the speed of strobe (255 is the fastest) 4 0-255 focus 5 0-255 Speed of focus (255 is the fastest) 2 CH Mode (Basic channel model) channel data Function Mark 1 0~255 Dimmer 0-255 linear dimmer 2 0~255 focus
If the device has been exposed to temperature changes due to environmental changes, do not switch it on immediately. The arising condensation could damage the device. Leave the device switched off until it has reached room temperature. This device falls under protection-class I. Therefore it is essential that the device be earthed. The electric connection must carry out by qualified person. The device shall only be used with rate voltage and frequency. Make sure that the available voltage is not higher than stated at the end of this manual. Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case, replacement of the cable must be done by an authorized dealer. Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power cord by the plug. Never pull out the plug by tugging the power cord. During initial start-up some smoke or smell may arise. This is a normal process and does not necessarily mean that the device is defective, it should decrease gradually. Please don't project the beam onto combustible substances. Fixtures cannot be installed on combustible substances, keep more than 50cm distance with wall for smooth air flow, so there should be no shelter for fans and ventilation for heat radiation. If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
Unpacking Thank you for choosing our LED FD Fresnel. For your own safety, please read this manual before installing the device. This manual covers the important information on installation and applications. Please install and operate the fixture with following instructions. Meanwhile, please keep this manual well for future needs. The LED FD Fresnel is made of a new type of high temperature strength of cast aluminum casing with nice outlook. The fixture is designed and manufactured strictly following CE&RoHS standards, complying with international standard DMX512 protocol. It's available independently controlled and linkable with each other for operation. And it is applicable for large-scale live performances, theater, studio, nightclubs and discos. The LED FD Fresnel adopts 1PCS 200W COB LED (available for WW) which features high brightness and stability. Please carefully unpack it when you receive the fixture and check whether it is damaged during the transportation. And please check whether the following items are included inside the box
DMX CHANNELS LED FD Fresnel -5 CH Mode (Standard channel model)
Channel Data Function
Mark 1 0~255 dimmer 0-255 linear dimmer 2 speed of dimmer 0~9 speed of dimmer 2 Default 10~29 Turn off speed of dimmer speed of dimmer 4 (the slowest and softest) 30~69 speed of dimmer 1 70~129 speed of dimmer 2 130~189 speed of dimmer 3 190~255 speed of dimmer 4 3 0~10 no strobe 11~255 the speed of strobe (255 is the fastest) 4 0-255 focus 5 0-255 Speed of focus (255 is the fastest) 2 CH Mode (Basic channel model) channel data Function Mark 1 0~255 Dimmer 0-255 linear dimmer 2 0~255 focus
If the device has been exposed to temperature changes due to environmental changes, do not switch it on immediately. The arising condensation could damage the device. Leave the device switched off until it has reached room temperature. This device falls under protection-class I. Therefore it is essential that the device be earthed. The electric connection must carry out by qualified person. The device shall only be used with rate voltage and frequency. Make sure that the available voltage is not higher than stated at the end of this manual. Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case, replacement of the cable must be done by an authorized dealer. Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power cord by the plug. Never pull out the plug by tugging the power cord. During initial start-up some smoke or smell may arise. This is a normal process and does not necessarily mean that the device is defective, it should decrease gradually. Please don't project the beam onto combustible substances. Fixtures cannot be installed on combustible substances, keep more than 50cm distance with wall for smooth air flow, so there should be no shelter for fans and ventilation for heat radiation. If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
Unpacking Thank you for choosing our LED FD Fresnel. For your own safety, please read this manual before installing the device. This manual covers the important information on installation and applications. Please install and operate the fixture with following instructions. Meanwhile, please keep this manual well for future needs. The LED FD Fresnel is made of a new type of high temperature strength of cast aluminum casing with nice outlook. The fixture is designed and manufactured strictly following CE&RoHS standards, complying with international standard DMX512 protocol. It's available independently controlled and linkable with each other for operation. And it is applicable for large-scale live performances, theater, studio, nightclubs and discos. The LED FD Fresnel adopts 1PCS 200W COB LED (available for WW) which features high brightness and stability. Please carefully unpack it when you receive the fixture and check whether it is damaged during the transportation. And please check whether the following items are included inside the box
