Specification
SOURCE

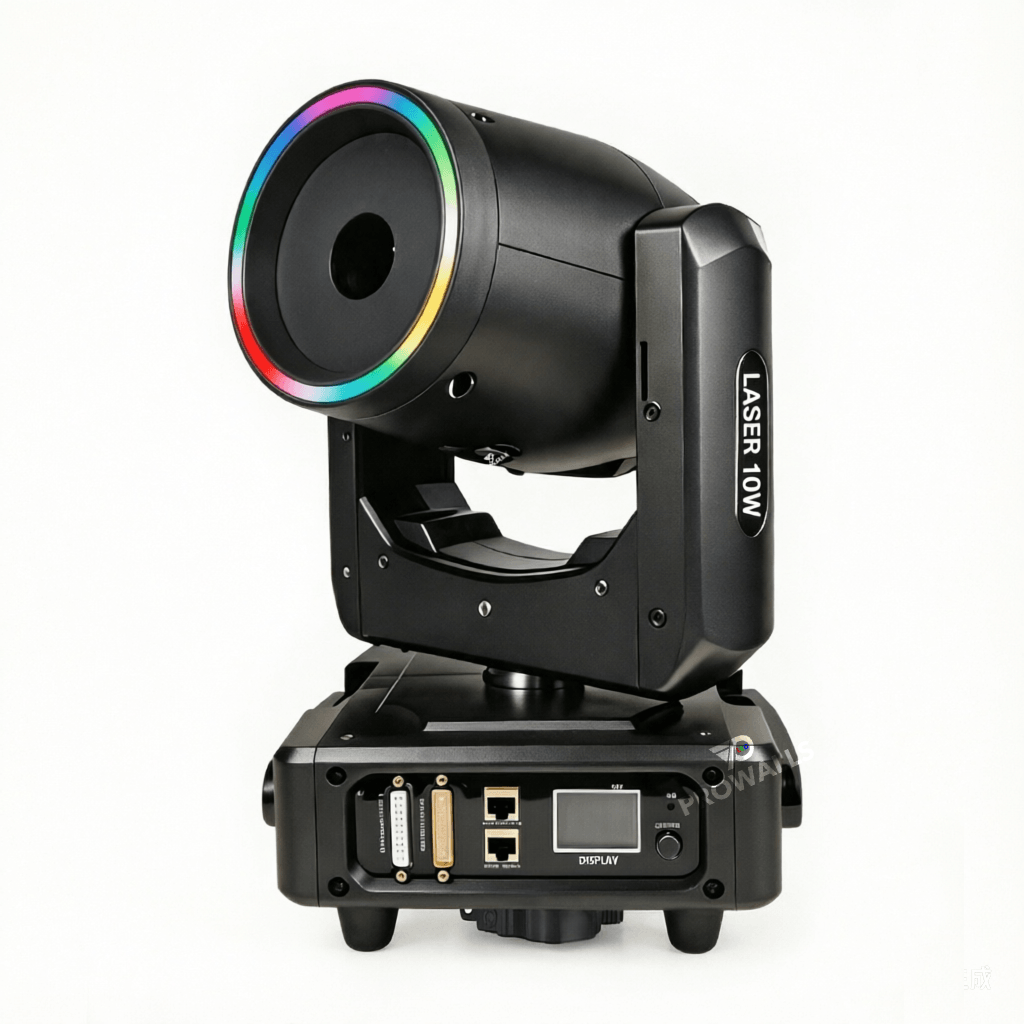

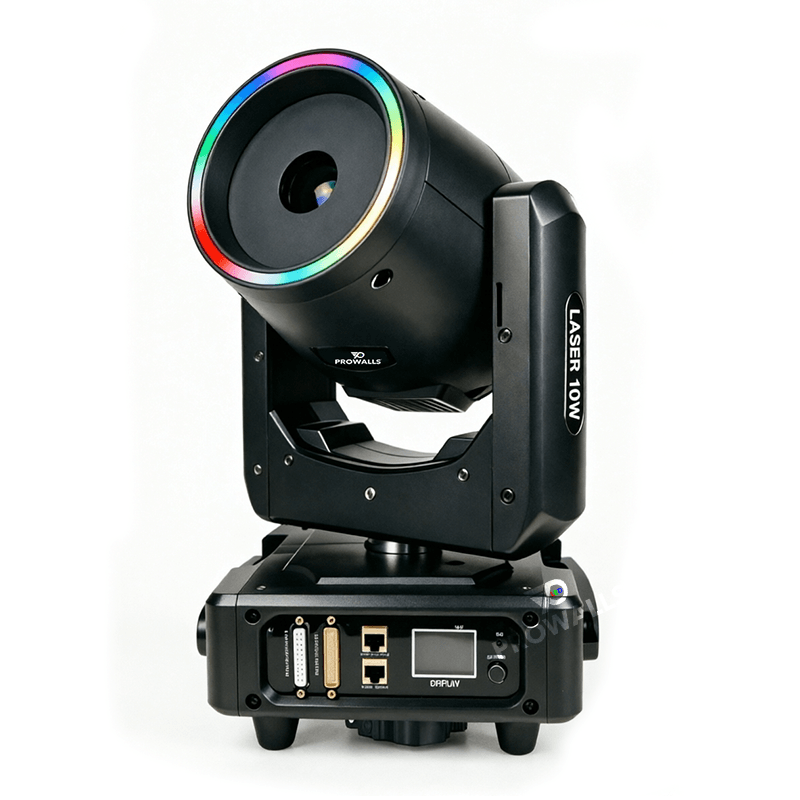

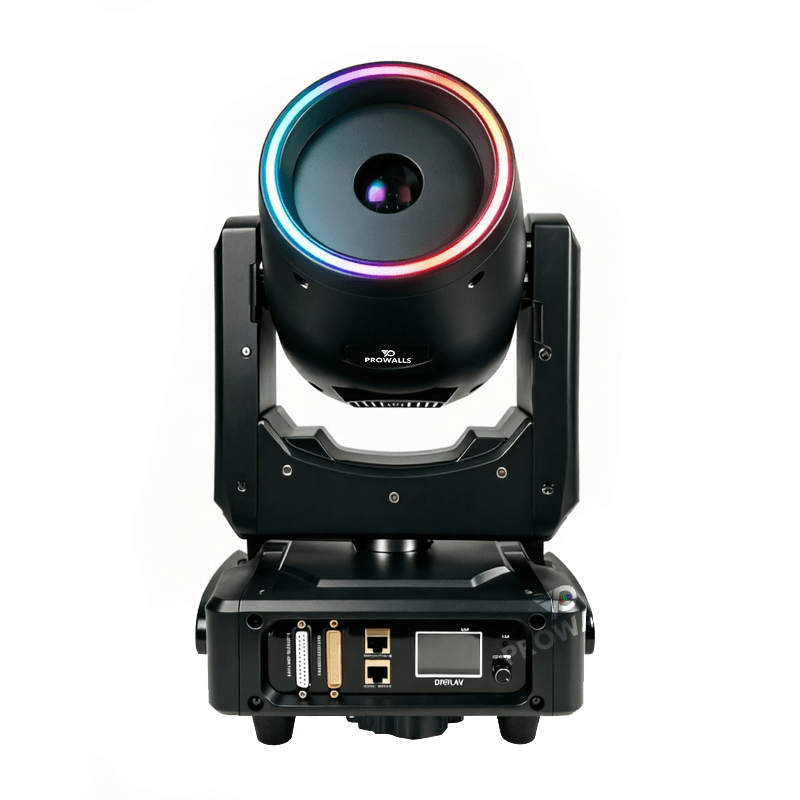

10W full-color RGB Laser
24pcs SMD5050 RGB LED ring
FUNCTION
Input voltage: AC100-240Vac, 50/60Hz
Rated power: 300W
Laser color: RGB full-color
Laser power: RGB 10W
Laser light source: R3w/638nm G3w/525nm B4w/447nm/
Laser pattern: 88 laser animation patterns
Modulation signal: TTL modulation (analog modulation)
Scanning system: galvanometer scanning 30KPPS
Scanning angle: plus or minus 20 degrees
Stepper motor: 2 two-phase 57 motors
Horizontal: 540 degrees Vertical: 270 degrees
LED dyeing configuration: Three layer wheat jazz light strip
Control method: Auto run Built-in 88 program, DMX, sound, computer ILDA interface, Ethernet Art Net control modes, support play, draw, customize patterns by App on Phone.
Control channel: 20/25 channels.
DMX special effects: single pattern mode, with functions such as pen breakage, flicker, rotation, movement, scrolling, segmentation, gradient drawing, color change, and resizing.
Function: Can be controlled by laser software such as pangolin QSFB3/FB4 or Phoenix.
The ILDA control adopts an automatic electronic transfer switch, which has scanning system error protection and laser shutdown protection.
Instructions for use: The ambient temperature should be controlled between 0~35 ℃. A dry and dust-free environment can reduce laser power attenuation and extend the lifespan of the lamp
Suitable venues: nightclubs, bars, nightclubs, concerts, advertising promotions, etc
Cooling system: fan forced cooling of Shaking head laser+LED dye light
Bare lamp size: 31 * 25 * 47cm
Net weight: 9.3kg
Packaging size: 50 * 34 * 35cm
Gross weight: 10.5kg

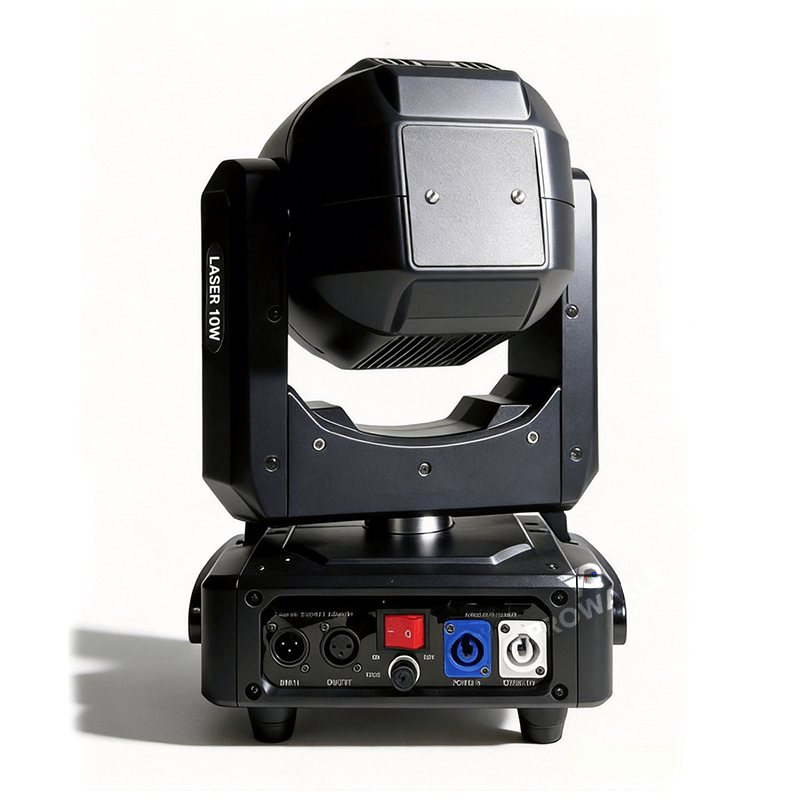

CONTROL & CONNECTIONS
(1) DMX Channel Modes (28 channels) / SD Laser Controller system
3-pin DMX In/Out
PowerCON Power In / Out
DMX512, Auto run, Sound, Master/Slave, Build-in Program
THERMAL & ELECTRICAL
300W max Power Consumption
Input voltage: 100-240V AC/50-60 Hz
