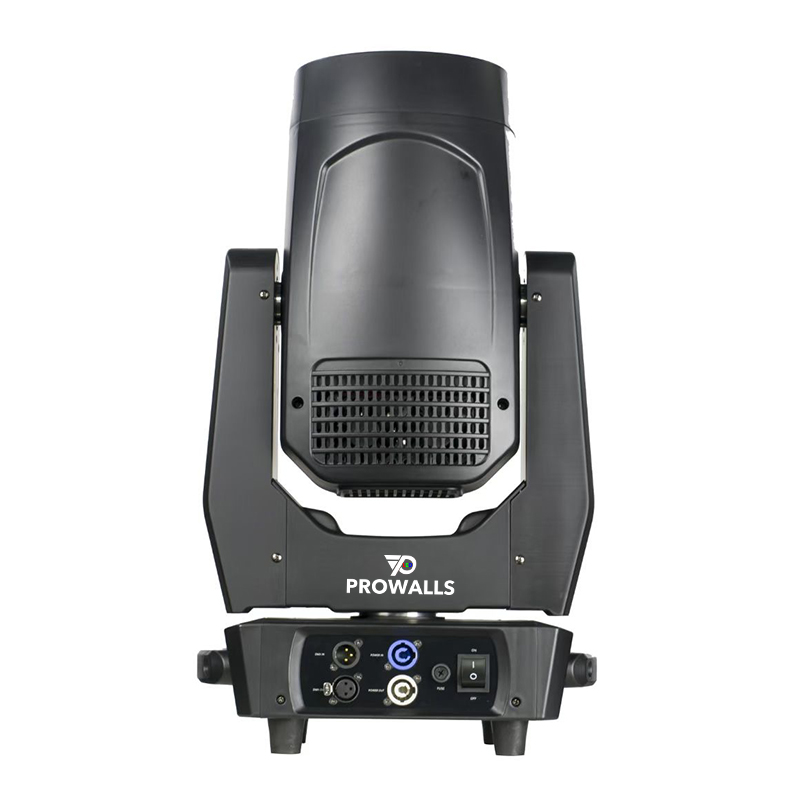

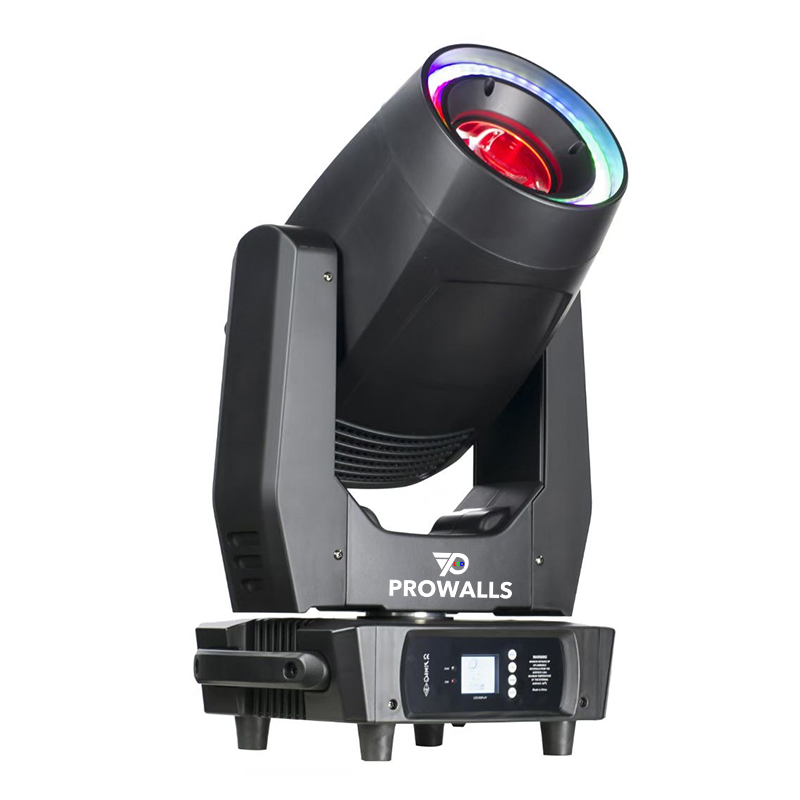

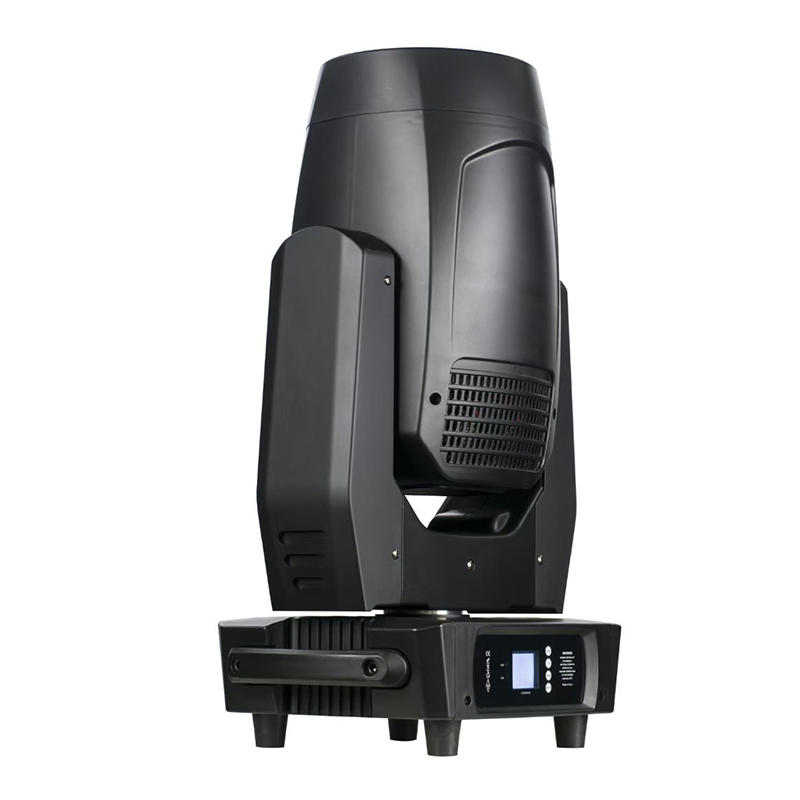

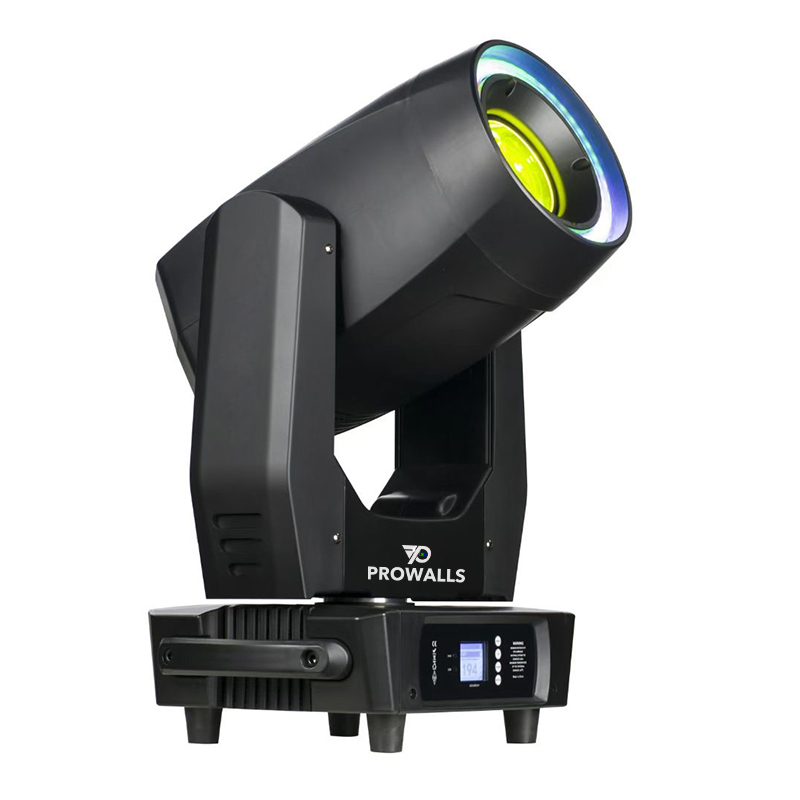

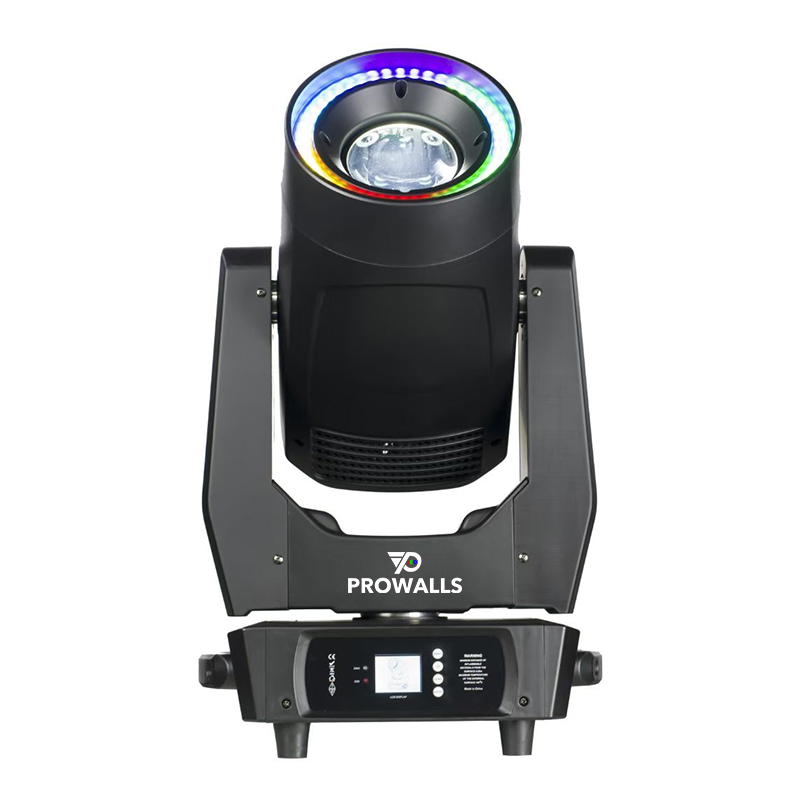

LedRing Hybrid BWS280

Specification

SOURCE

LED COB280+ 96RGB 0.3W Led Circle Ring

7500K color temperature, CRI＞75

50,000 Hours LED Lifetime (May vary depending on different factors)

FUNCTION

BWS ( Beam Wash Spot ) 3-in-1 Hybrid

3-Facet Rotating Prisms ( 2 direction)

9 dichroic Colors+Open, halfcolor and rainbow effect

9 fixed Gobos+open

7 Interchangeable / Rotating Gobos (Rotating in both directions at variable speed)

7-45° Linear Zoom and Frost

Adjustable the Angle of soft Spot

0-100% linear Dimming

Linear motorized Focus

Linear Frost, awesome wash effect

Variable from 1-25 flashes or random strobe

3 Phase Motor on Pan/Tilt ( Ultra Fast, precise silent movement)

Extremly quiet motors and fast, stable

CONTROL & CONNECTIONS

(1) DMX Channel Modes (22/25 channels)

Intelligent LCD Display

3-pin DMX In/Out

PowerCON Power In/Out

DMX512, Auto run, Sound, Master/Slave

THERMAL & ELECTRICAL

280W max Power Consumption

Input voltage: 100-240V AC/50-60 Hz

APPROVALS / RATINGS

CE | RoHs Compliant | IP20

SIZE / WEIGHT

15.3" (390mm) Length

11.0" (280mm) Width

26.8" (680mm) Height

26.5 lbs (12 kg) Weight
